Electric Drive Motors

The Power to Drive the Future

Horsepower:  200 HP @ 150 KW
Torque:  266 LB-FT @ 360 NM
Motor:  SYNCHRONIZED PERMANENT MAGNET

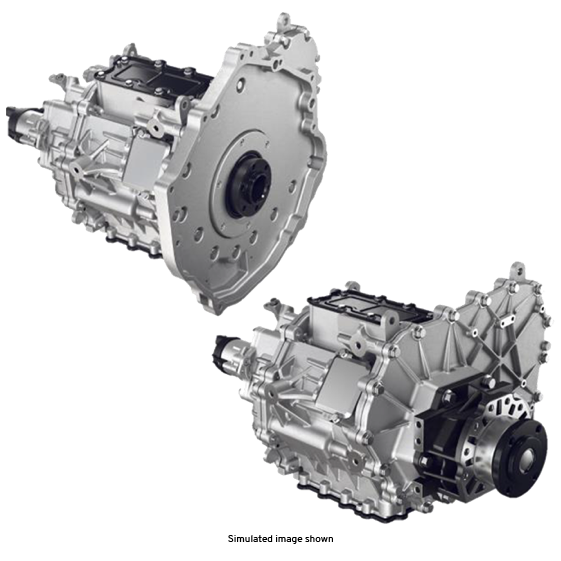

GM Powered Solutions Two Electric Drive Motors

Features &
Specifications

GM offers electric drive motors for integrating applications across different industries, from automotive to light industrial to marine. The automotive-designated motor can operate individually, or for greater power needs, can have up to three drive motors linked or stacked together. Installation is simplified since the automotive motor can be mounted to a standard GM crate transmission without modification or use of adapters. For light industrial and marine applications, the off-highway motor offers output housings for direct-drive or gear-reduction systems.

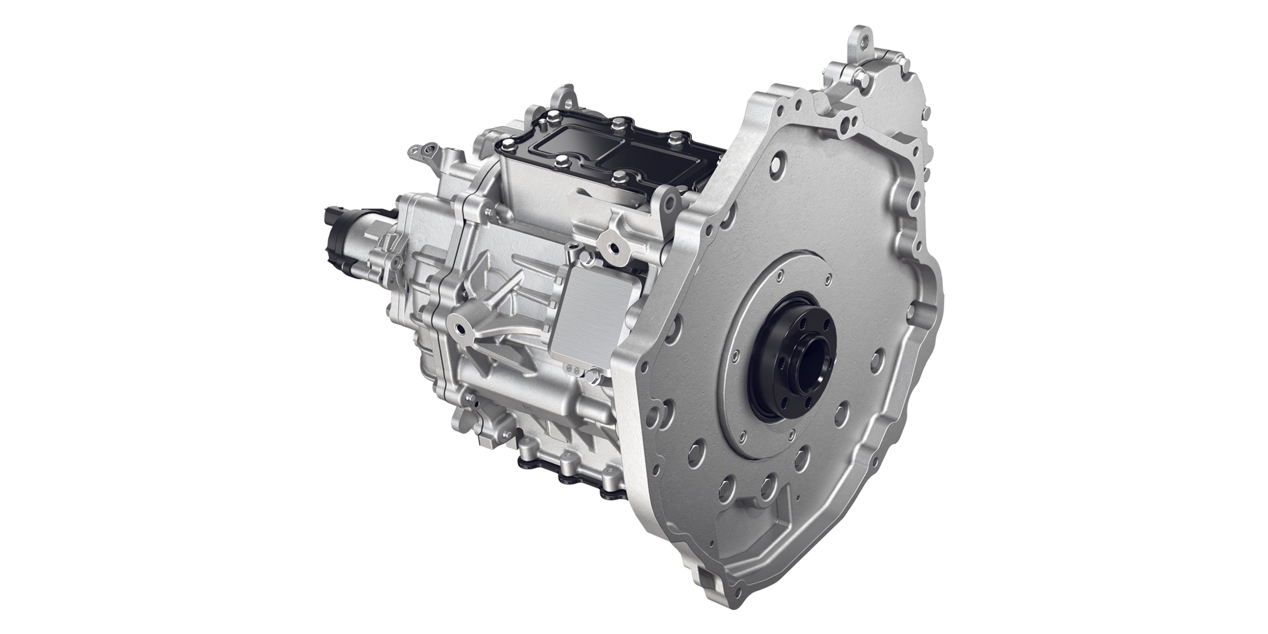

GM Powered Solutions 400 Volt Automotive Drive Motor
400-Volt Automotive Drive Motor
Application Type Automotive
Type Single motor
Motor Synchronized permanent magnet
Power 200 hp / 150 kW
Torque (lb-ft)/(Nm) 266 lb-ft / 360 Nm
ePowered Battery Options 66 kWh single, 48 kWh double, 72 kWh triple
Additional Features
  • Can be linked up to three units for greater power vs. a single unit
  • Can be mounted to a standard GM crate transmission
Length (L) 490 mm/19.3 in.
Height (H) 436 mm/17.2 in.
Width (W) 478 mm/18.8 in.

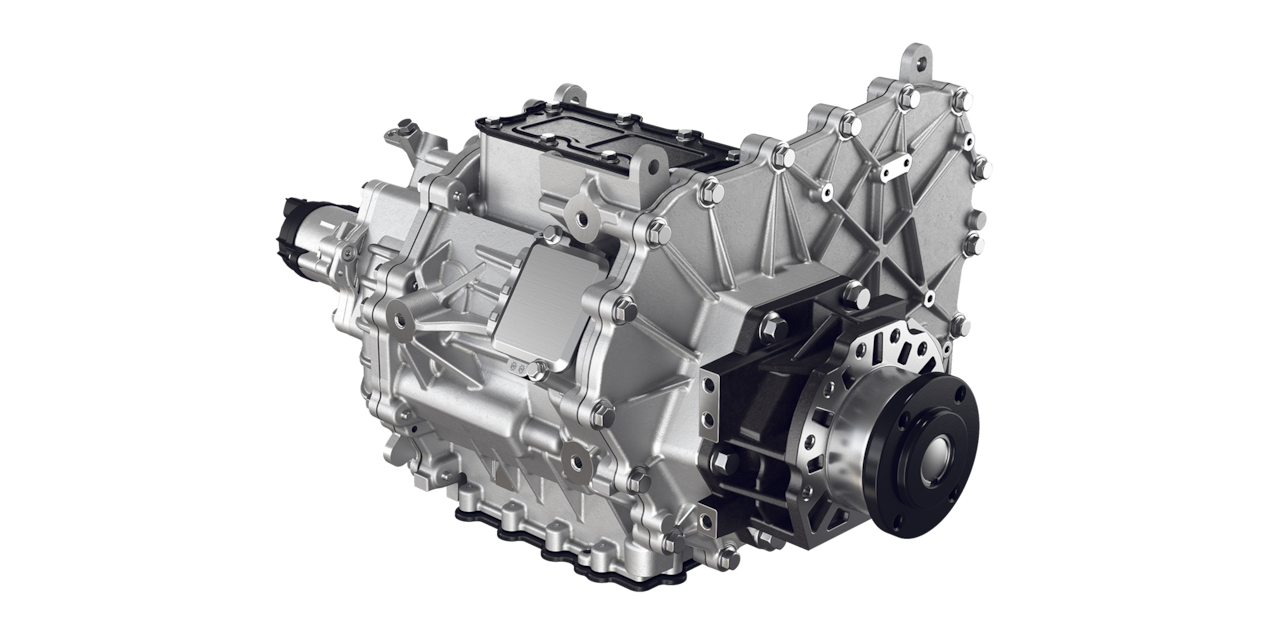

GM Powered Solutions 400 Volt Off-HWY Drive Motor
400-Volt Off-Highway Drive Motor
Application Type Light industrial, smaller applications
Type Single motor
Motor Synchronized permanent magnet
Power 200 hp / 150 kW
Torque (lb-ft)/(Nm) 266 lb-ft / 360 Nm
ePowered Battery Options 66 kWh single, 48 kWh double, 72 kWh triple
Additional Features
  • Capable of direct drive or gear-reduction output
  • Four-bolt mounting on shaft
Length (L) 594 mm / 23.4 in.
Height (H) 352 mm / 13.9 in.
Width (W) 430 mm / 16.9 in.
