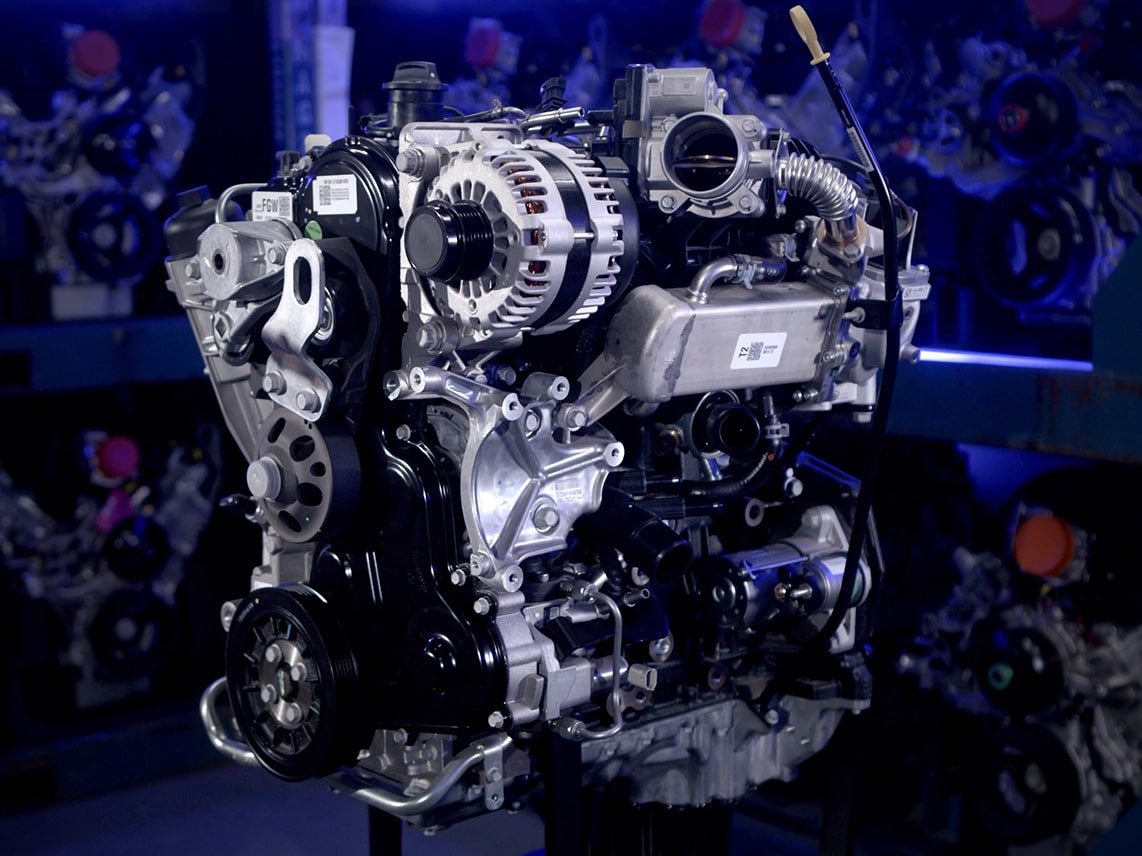

The GM Powered Solutions 2.8L I-4 LWN Duramax Turbo Diesel Engine

2.8L I-4 LWN DURAMAX® TURBO-DIESEL

SMALL FOOTPRINT.
BIG IMPRESSION.

Horsepower Icon

HORSEPOWER: 204 HP (152 kW) @ 3200 RPM*
Torque Icon

TORQUE: 376 LB-FT (510 Nm) @ 1600-2400 RPM*
Cylinders Icon

CYLINDERS: 4
Fuel Icon

ULTRA-LOW SULFUR DIESEL AND B20 BIODIESEL
Contact Us
Contact Us

2.8L I-4 LWN Features & Specifications
Download Specs

Compared to 2024 and earlier 2.8L variants, our latest Duramax 2.8L LWN turbo diesel engine offers increased horsepower with a broader torque band for impressive power and no-compromise durability. A broad torque band helps make the 2.8L Duramax very powerful at low rpm, while the all-new turbocharger’s performance provides a confident feeling of immediate and smooth horsepower on demand.  Latest Refinements vs. 2024 and Earlier Models:



  • Horsepower increase from 181 hp to 204 hp.

  • Torque increase from 369 lb.-ft. to 376 lb.-ft with broader plateau.

  • Redesigned water-cooled, variable geometry turbocharger with electric actuator.

  • Aluminum pistons with new bowl design for combustion and heat resistance.

  • Increased fuel pressure (2000 to 2200 bar).

  • Redesigned fuel injector nozzles.

  • New E71 electronic control module. Can also use GM Powered Solutions DMEFI-1 controller.

  • Available electronic radiator cooling fan.
Download Specs

Combustion System:

Compression Ignition

Induction System:

Variable-Geometry Turbocharger

Displacement:

2776 cc

Engine Orientation:

Longitudinal

Compression Ratio:

15:5:1

Valve Configuration:

Dual Overhead Camshafts

Valves per Cylinder:

4

Valve Timing:

Fixed

Assembly Site:

São José dos Campos, Brazil

Firing Order:

1–3–4–2 

Bore x Stroke:

94.00 x 100.00 mm

Fuel System:

Direction Injection Common Rail

Fuel Type:

Ultra-Low Sulfur Diesel and B20 Biodiesel

Engine Mass:

236 kg (520 lb.) 

Horsepower:

204 hp (152 kW) @ 3200 rpm*

Torque:

376 lb.-ft (510 Nm) @ 1600-2400rpm*

Maximum Engine Speed:

5000 rpm

Engine Controls:

E71 ECM or GM Powered Solutions DMEFI-1

Emissions Controls:

Close Coupled Diesel Oxidation Catalyst, Selective Catalytic Reduction with Urea Injection, Diesel Particulate Filter, Cooled Exhaust Gas Recirculation Valve, Positive Crankcase Ventilation

Emissions Standard:

Euro 5 / Proconve L7 (PL7)

Euro 6c / Proconve L8 (PL8)

Block:

Grey Cast Iron 

Cylinder Head:

Aluminum

Intake Manifold:

Composite

Exhaust Manifold:

Cast Nodular Iron

Crankshaft:

Forged Steel 

Camshaft:

Powdered Metal/Sintered Lobes

Connecting Rod:

Forged Steel 

*As tested in Chevrolet S10, South America
