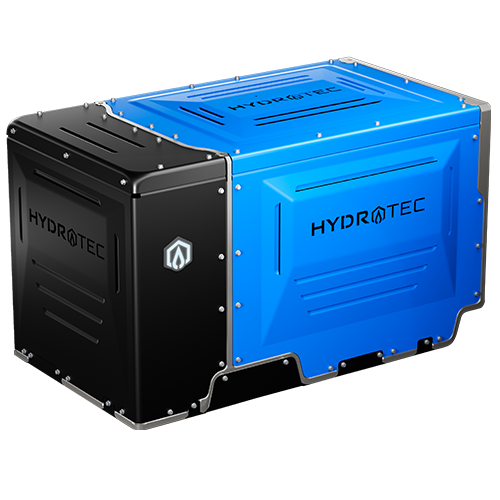

HYDROTEC POWER CUBE

POWER WITH ZERO-TAILPIPE EMISSIONS

Horsepower Icon

POWER: 77 kW
Fuel Icon

FUEL TYPE: GASEOUS HYDROGEN
Contact Us
Contact Us

A Complete Hydrogen Fuel Cell System with the HYDROTEC power cube

Your road map to hydrogen fuel cell power is simple — use the HYDROTEC power cube hydrogen fuel cell + RESS + operational components.
test

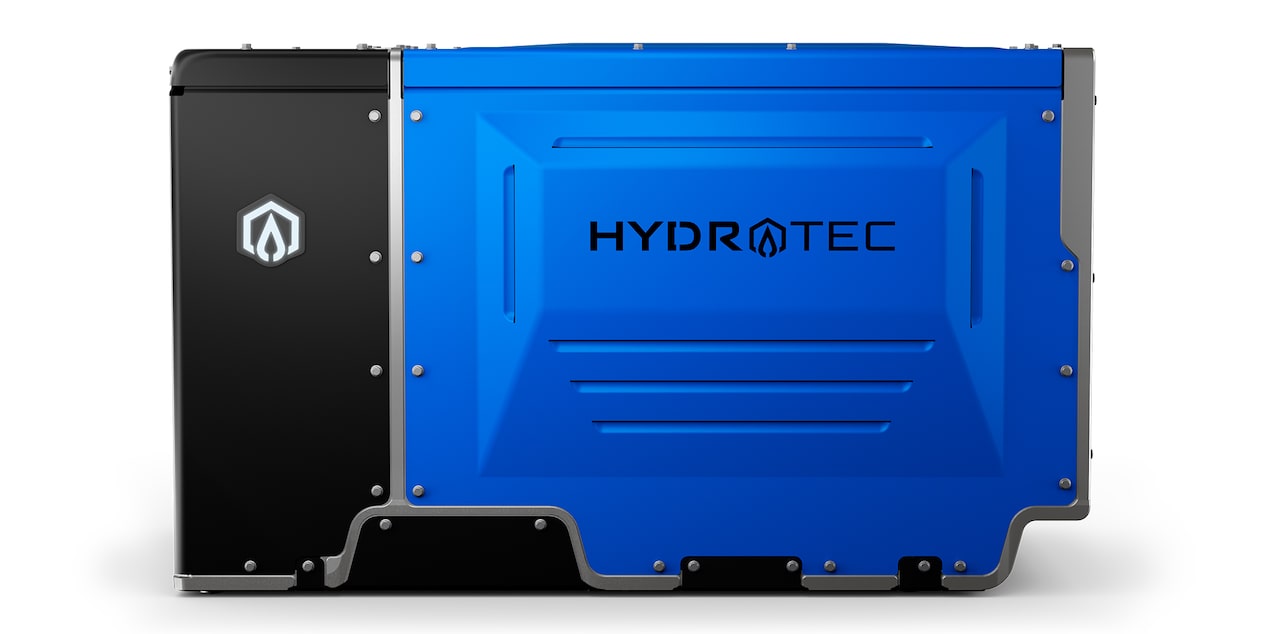

HYDROTEC power cube

The HYDROTEC power cube provides the fuel cells that function at the heart of most applications, generating power through an electrochemical process.
A GM Fuel Cell Component

RESS

A Rechargeable Energy Storage System (RESS) will store the energy generated by the HYDROTEC power cube to help power the application.
test

Operational Components

To complete the application, additional operational components will be needed, including but not limited to: hydrogen tank(s), power inverters, controls, heat exchangers, coolant and hoses.
test

HYDROTEC power cube

A GM Fuel Cell Component

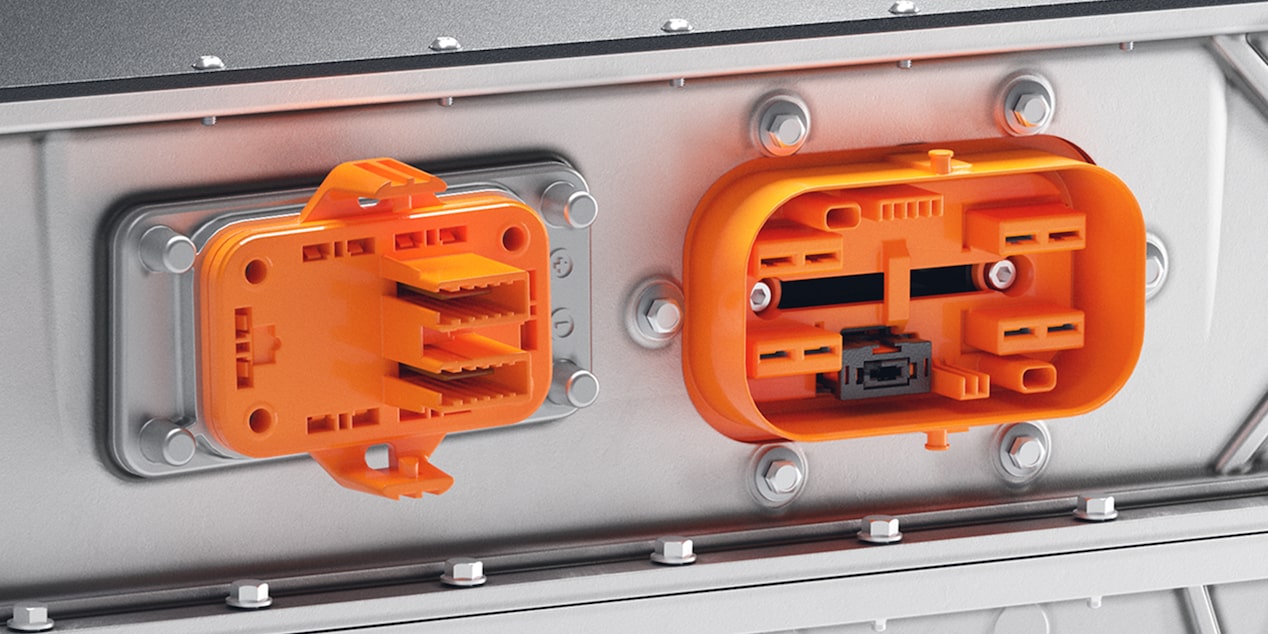

RESS

test

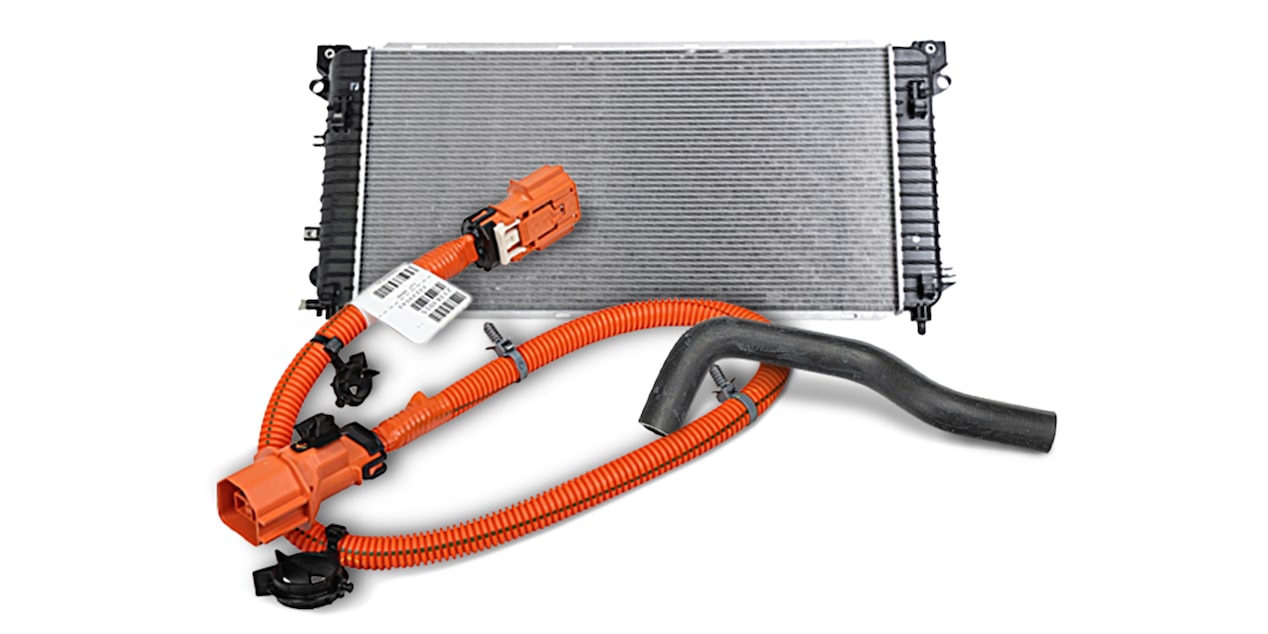

Operational Components

The HYDROTEC power cube provides the fuel cells that function at the heart of most applications, generating power through an electrochemical process.

A Rechargeable Energy Storage System (RESS) will store the energy generated by the HYDROTEC power cube to help power the application.

To complete the application, additional operational components will be needed, including but not limited to: hydrogen tank(s), power inverters, controls, heat exchangers, coolant and hoses.
test

HYDROTEC FUEL CELL
Serviceability

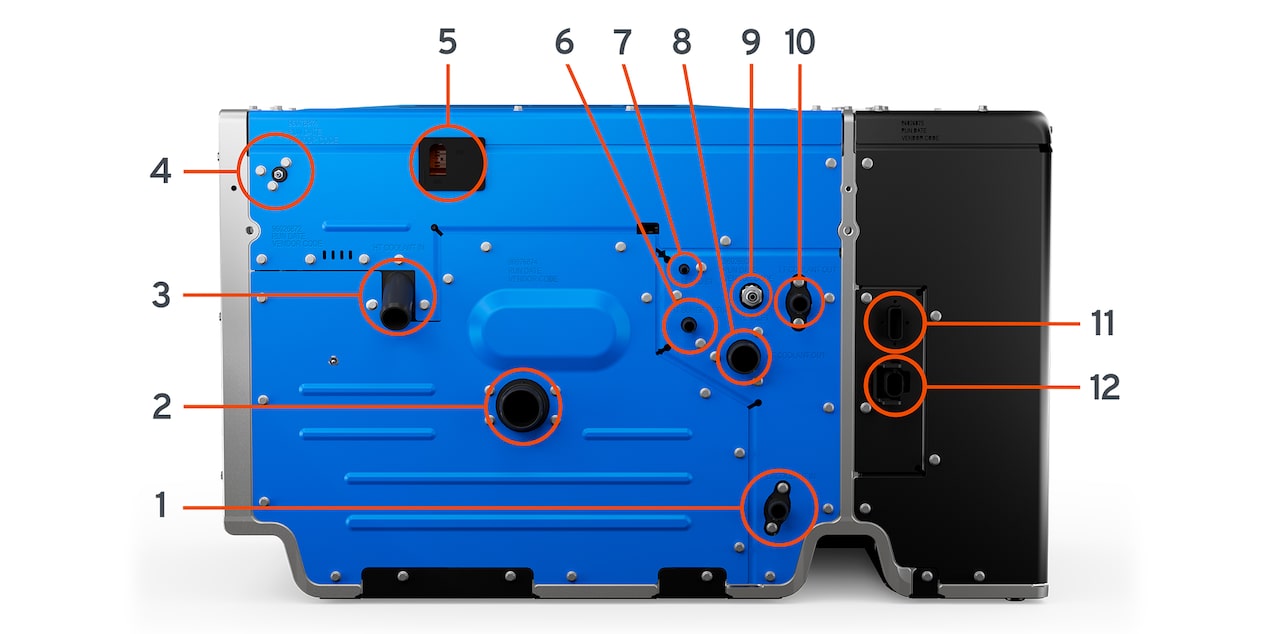

GM built the HYDROTEC power cube for easy installation and servicing, featuring a streamlined design with all system connections on one side.

test
  1. Low Temp Coolant – In
  2. Fresh Air – In
  3. High Temp Coolant – In
  4. Low Temp Coolant Bleed
  5. High Voltage – In/Out
  6. High Temp Coolant Surge-Return
  7. High Temp Coolant Bleed
  8. High Temp Coolant – Out
  9. Hydrogen Fuel – In
  10. Low Temp Coolant – Out
  11. Power Controls Interface (PCI)
  12. 12V Power Input – For starting and LV controls
  1. Low Temp Coolant – In
  2. Fresh Air – In
  3. High Temp Coolant – In
  4. Low Temp Coolant Bleed
  5. High Voltage – In/Out
  6. High Temp Coolant Surge-Return

7. High Temp Coolant Bleed

8. High Temp Coolant – Out

9. Hydrogen Fuel – In

10. Low Temp Coolant – Out

11. Power Controls Interface (PCI)

12. 12V Power Input – For starting and LV controls

HYDROTEC
Power Cube Features and Specifications

Specifications

The HYDROTEC Power Cube holds over 300 precisely crafted fuel cells and supporting components. In addition to functioning with zero-tailpipe emissions, the power cube can convert 1kg of hydrogen into 15kWh of electrical energy. The power cube can be arrayed in multiple units to achieve higher power ratings, and it provides easy access to air, fuel and cooling connections for integration.

 Specifications

Performance

Net Peak System Power:

77 kW

Voltage:

486-803 VDC (Nominal)

Current:

158 A max (Continuous)

Physical

Mass:

258 kg

Operating Temperature:

-22° F (-30° C) to 140° F
(60° C) (Start and Run)

Storage Temperature:

-40° F (-40° C) to 140° F (60° C)

Environmental Pressure:

62-106 kPa

Dimensions:

1,116 mm x 630 mm x 659 mm

Hydrogen Supply

Fuel Type:

Gaseous Hydrogen

Pressure:

810-1,100 kPa

Temperature:

-40° F (-40° C) to 185° F (85° C)

Coolant and Reactor

Pressure (High-and Low-Temperature):

100-200 kPa-g

Low-Temperature Coolant Type:

EG/DI Water Solution

High-Temperature Coolant Type:

Proprietary Solution

Controls

Control Interface:

CAN Interface, J1939, 500kbps
